G'ildiraklardagi stollarni ko'tarish

Ish joyida qulay harakatlanish uchun pastki qismida mustahkam poliuretan g'ildiraklarni (PU) o'rnatish imkoniyati bilan moslashtirilgan ko'tarish stoli.

So'rov yuborish

Hozir chat

Ta'rif

Lift Tables On Wheels-ning gidravlik tizimi qismi ko'taruvchi platforma quvvatli motor nasos stantsiyasidan, neft trubkasidan va yog 'tsilindridan iborat bo'lib, pastki ramka qulay harakatlanish uchun g'ildiraklar bilan jihozlangan. Ish printsipi shundan iboratki, vosita tishli nasosni haydash uchun aylanadi va tishli nasos moyni yuqori bosim bilan gidravlik moy pallasiga pompalaydi. Yog 'tsilindrini ko'tarish uchun suring va moy tsilindrining kengaytmasi butun vilkalar ramkasini cho'zish va ko'tarish uchun boshqaradi. Kompaniya barcha Lift stollariga ikki yil kafolat berilishini va'da qilmoqda. Asosiy tuzilma besh yillik raf muddatini ta'minlaydi.

Model	Yuk ko'tarish quvvati (KG)	O'z balandligi (MM)	Maksimal platforma balandligi (MM)	Platforma hajmi (MM)	Ko'tarish vaqti (S)	Sof og'irlik (KG)
500 kg yuk ko'tarish qobiliyati
C0501	500	180	950	610*916	17~22	160
C0502	500	200	1000	1200*600	20~25	120
C0503	500	200	1000	1200*800	20~25	130
C0504	500	200	1000	2000*800	20~25	240
1000KG yuk ko'tarish quvvati
C1000	1000	180	770	610*916	15~20	115
C1001	1000	205	1000	1300×820	20~25	160
C1002	1000	205	1000	1600×1000	20~25	186
C1003	1000	190	1010	1300*800	20~25	160
C1004	1000	240	1300	1700×850	30~35	200
C1005	1000	240	1300	1700×1000	30~35	210
C1006	1000	240	1300	2000×850	30~35	212
C1007	1000	240	1300	2000×1000	30~35	223
C1008	1000	240	1300	1700×1500	30~35	365
C1009	1000	240	1300	2000×1700	30~35	430
C1010	1000	305	1780	1300X820	35-45	210
C1011	1000	470	3000	1700x1000	35-45	450
2000KG yuk ko'tarish quvvati
C2001	2000	230	1000	1300×850	20~25	235
C2002	2000	205	1000	2500*820	20~25	300
C2003	2000	230	1050	1600×1000	20~25	268
C2004	2000	250	1300	1700×850	25~35	289
C2005	2000	250	1300	1700×1000	25~35	300
C2006	2000	250	1300	2000×850	25~35	300
C2007	2000	250	1300	2000×1000	25~35	315
C2008	2000	250	1400	1700×1500	25~35	415
C2009	2000	250	1400	2000×1800	25~35	500
C2010	2000	190	1010	1300*800	20~25	235
C2011	2000	350	1780	1300X850	35-45	295
4000KG yuk ko'tarish quvvati
C4000	4000	230	1000	2500*850	20~25	320
C4001	4000	240	1050	1700×1200	30~40	375
C4002	4000	240	1050	2000×1200	30~40	405
C4003	4000	300	1400	2000×1000	35~40	470
C4004	4000	300	1400	2000×1200	35~40	490
C4005	4000	300	1400	2200×1000	35~40	480
C4006	4000	300	1400	2200×1200	35~40	505
C4007	4000	350	1300	1700×1500	35~40	570
C4008	4000	350	1300	2200×1800	35~40	655
C4009	4000	400	2050	1700X1200	55-65	520
Maksimal platforma balandligi 3M dan katta yoki unga teng
C1011	1000	470	3000	1700x1000	35-45	450
C2012	2000	560	3000	1700x1000	50-60	750
C2013	2000	850	4200	2500*1500	70-80	900
C0401	400	600	4140	1700x1000	30-40	800
C0801	800	706	4210	1700x1000	70-80	858
Boshqa
C3001	3000	220	1010	1300*800	20~25	350
C8000	8000	240	1050	3000*1200	20~25	370

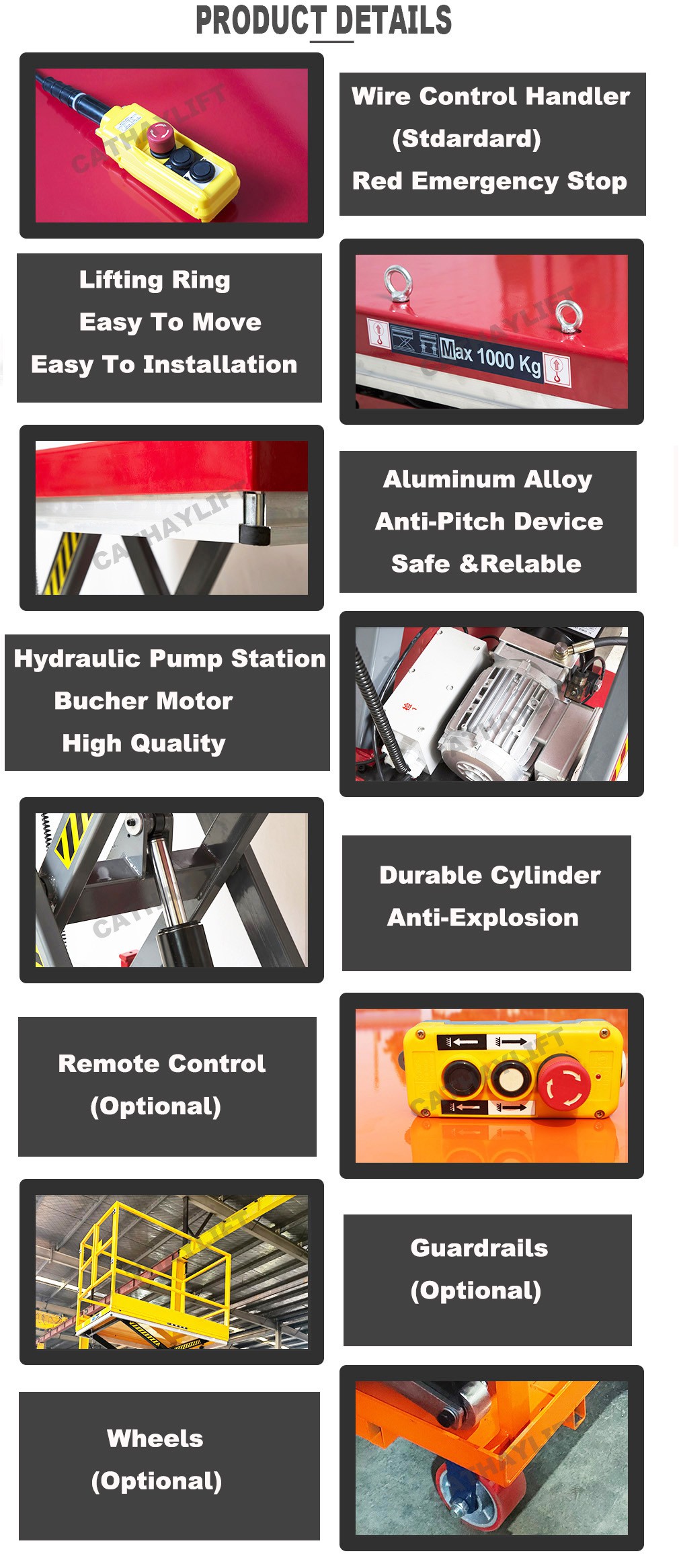

Mahsulot tafsilotlari

hydraulic lift table-details 3
